HFS-5000PR

Snow ice making equipment

A high-performance industrial machine for producing snow-like ice.

5,000 kg of ice at-21°C per day

[Product Specifications]

  • Ice production capacity: 5,000 kg/day (-21°C) 8,000 kg/day (-1°C)
  • Freezing capacity: 2,400 kg/day (100 kg/hour)
  • Snow ice temperature: (-21°C / -1°C)
  • Snow Ice Source Water: 23.5 wt% Brine or 1.0 wt% Brine
Product image: snow ice making equipment HFS-5000PR
Up to 100x Higher Thermal Conductivity

Compared to conventional freezing technologies:

· Air blast (approximately 0.02 W/mK)

· Alcohol brine (approximately 0.183 W/mK)

· HFS has up to 100 times the thermal conductivity (approximately 2.2 W/mK).

Highly concentrated salt water, known as antifreeze, is made possible by freezing technology.

Ultimate Freshness Preservation
Freshness comparison: cell preservation vs. slow freezing

Power Supply: Three-phase AC 200V

Power Consumption: Freezer Unit 30kW / Ice Maker Unit 2kW

Equipment Weight: Freezer Unit approx. 1200kg / Ice Maker Unit approx. 1100kg

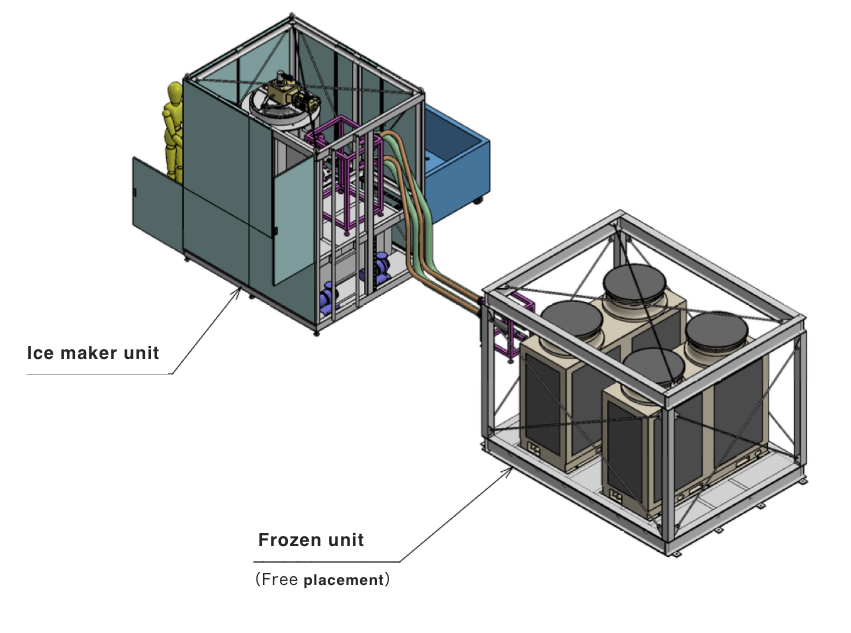

Isometric system view of ice-making and refrigeration units

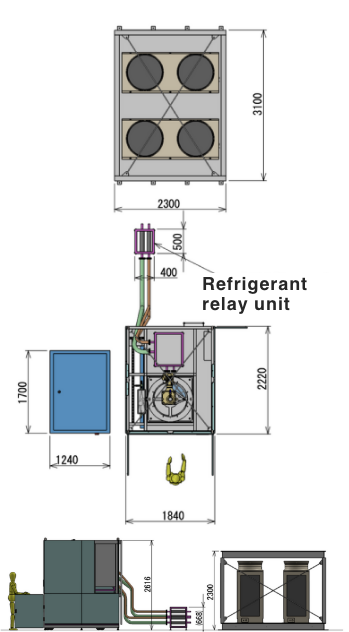

Plan views and elevations with dimensions

HFS-5000PR

Snow ice making equipment

A high-performance industrial machine for producing snow-like ice.

A modularfreezing linescalableup to 10,000 kg/day of -21°C iceby linking units.

Illustration of linked-unit snow ice production line

HFS-100CP

Ice slurry freezing system — compact type

Compact & high-performance slurry freezer for labs and small-scale processing.

No installationrequired.-35°C slurry ice,anywhere.

[Product Specifications]

  • Freezing Capacity: 100 kg/day
  • Freezing Temperature: -23°C to -35°C
  • Ice Slurry Raw Water: Ethanol Aqueous Solution (approx. 33 wt%)
  • Freezing Tank Capacity: 80 L (W800 x D400 x H300 mm)
  • Temperature Monitor: Digital Thermometer
  • Agitation System: DC Brush Motor & Stainless Steel Blades
  • External Dimensions: W960 x D600 x H800 mm
  • Power Supply: Three-Phase AC 200V, 1.1kW Refrigeration Unit, 0.4kW DC Brush
  • Unit Weight: Approx. 120 kg (with 75mm casters)
Product exterior: compact ice slurry freezing unit HFS-100CP
Outline dimensions and three-view drawing
